Agricultural Drag Chain
Agricultural Drag Chain

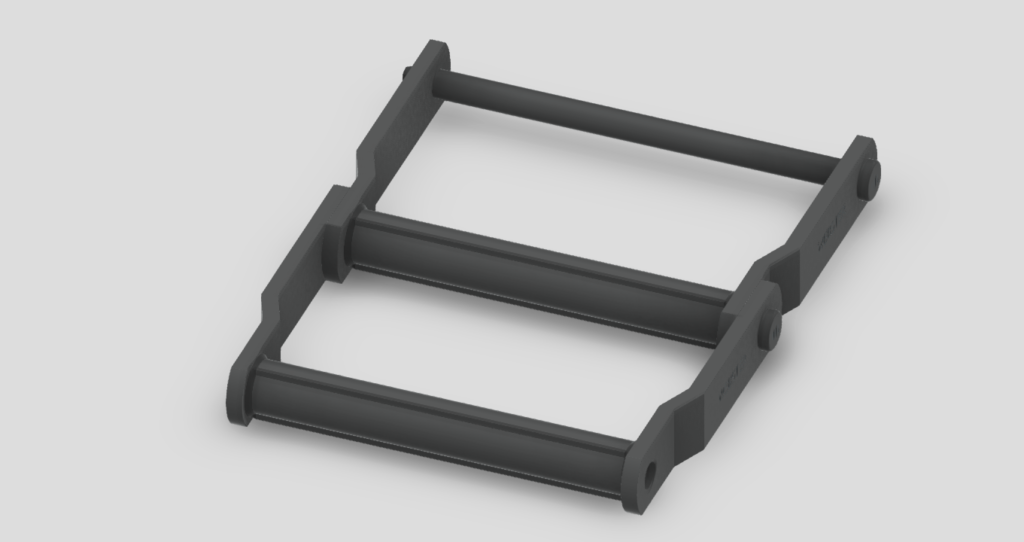

- Wide Series Welded Steel Chain.
- WDH Series: All components are through-hardened to ensure exceptional durability and toughness.
- Riveted construction comes standard.
- Optional (MTO): Lube holes can be added to barrels or reverse barrels.
- Large bearing surfaces enhance working load capacity.
- Symmetrical design allows the chain to be flipped, extending its service life.
- Bulk Drag Conveyors
- Elevators
- Clinker Drag Conveyors
- Lime Drag Conveyors
- Industrial Minerals
- Forest Products
- Cement
- Grain
- Fertilizer
- Sugar Processing

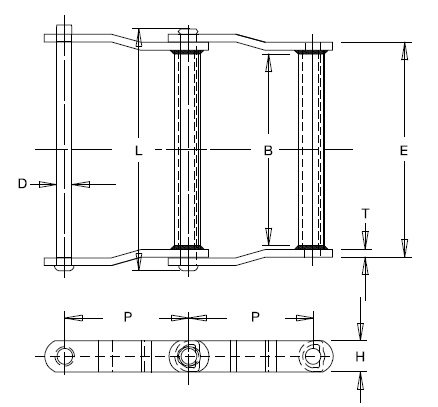

| Chain No. | Pitch | Inner Width Max | Barrel Diam Max | Plate Height Max | Plate Thick Max | Pin Diam Max | Pin Length Max | Average Ultimate strength | Rated Working Load | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
A |
B |
C |
D |
E/F |
G |
H |
Lbs |
Lbs |
Lbs/Ft |
|
WDH110 |
6.000 |
9 |
.75 |
1.5 |
.375 |
.75 |
6.8125 |
60,000 |
10,000 |
12 |
|
WDH480 |
N/A |
N/A |
N/A |
N/A |
N/A |
N/A |
N/A |
N/A |
N/A |
N/A |
|
WDH580 |
N/A |
N/A |
N/A |
N/A |
N/A |
N/A |
N/A |
N/A |
N/A |
N/A |
