Welded Steel Mill

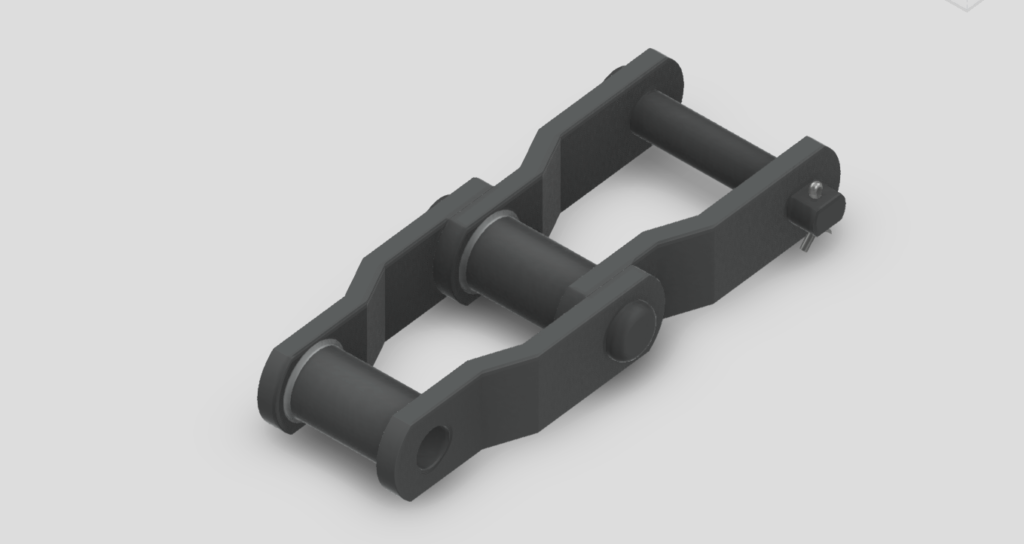

Engineering Class Welded Steel Mill Chain
Engineered for robust conveyor operations.
Round press-fit pins enhance durability and fatigue resistance.
Precision-machined pitch holes ensure superior quality.
Easily withstands impact and abrasive conditions.
Offered in both Carbon Steel and Stainless Steel options.
A direct replacement for cast pintle and combination chains.
The WHX series provides additional protection against wear and abrasion.
Available in both riveted and cottered styles.
- Bulk Drag Conveyors
- Elevators
- Clinker Drag Conveyors
- Lime Drag Conveyors
INDUSTRIAL MINERALS
FOREST PRODUCTS
CEMENT
GRAIN
FERTILIZER
SUGAR PROCESSING

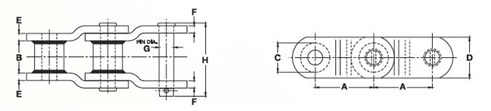

| Chain No. | Pitch | Inner Width Max | Barrel Diam Max | Plate Height Max | Plate Thick Max | Pin Diam Max | Pin Length Max | Average Ultimate strength | Rated Working Load | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
A |
B |
C |
D |
E/F |
G |
H |
Lbs |
Lbs |
Lbs/Ft |
|
WH78 |
2.609 |
1.500 |
0.875 |
1.125 |
0.250 |
0.500 |
3.000 |
30,000 |
3,500 |
3.90 |
|
WH82 |
3.075 |
1.750 |
1.219 |
1.250 |
0.250 |
0.563 |
3.219 |
35,000 |
4,400 |
5.50 |
|
WH784 |
4.000 |
1.500 |
0.875 |
1.125 |
0.250 |
0.500 |
2.953 |
30,000 |
3,500 |
3.30 |
|
WH124 |
4.000 |
2.060 |
1.438 |
1.500 |
0.375 |
0.750 |
4.220 |
60,000 |
7,350 |
8.50 |
|
WH124HD |
4.063 |
2.000 |
1.625 |
2.000 |
0.500 |
0.875 |
4.672 |
90,000 |
9,150 |
14.40 |
|
WH111 |
4.760 |
2.625 |
1.438 |
1.500 |
0.375 |
0.750 |
4.750 |
58,600 |
8,850 |
8.40 |
|
WH106 |
6.000 |
2.063 |
1.375 |
1.500 |
0.375 |
0.750 |
4.187 |
56,500 |
7,400 |
6.70 |
|
WH110 |
6.000 |
2.250 |
1.250 |
1.500 |
0.375 |
0.750 |
4.375 |
60,000 |
7,850 |
6.60 |
|
WH132
|
6.050 |
3.375 |
1.750 |
2.000 |
0.500 |
1.000 |
6.172 |
100,000 |
13,100 |
13.50 |
|
WH132 |
6.050 |
3.375 |
1.750 |
2.000 |
0.500 |
1.000 |
6.172 |
100,000 |
15,300 |
13.50 |
|
WH150 |
6.050 |
3.375 |
1.750 |
2.500 |
0.500 |
1.000 |
6.172 |
100,000 |
13,100 |
14.50 |
|
WH150 |
6.050 |
3.375 |
1.750 |
2.500 |
0.500 |
1.000 |
6.172 |
100,000 |
14,500 |
14.50 |
|
WH155 |
6.050 |
3.313 |
1.750 |
2.500 |
0.563 |
1.125 |
6.563 |
175,000 |
17,000 |
20.50 |
|
WH157 |
6.050 |
3.375 |
1.750 |
2.500 |
0.625 |
1.125 |
6.875 |
175,000 |
20,000 |
20.50 |
